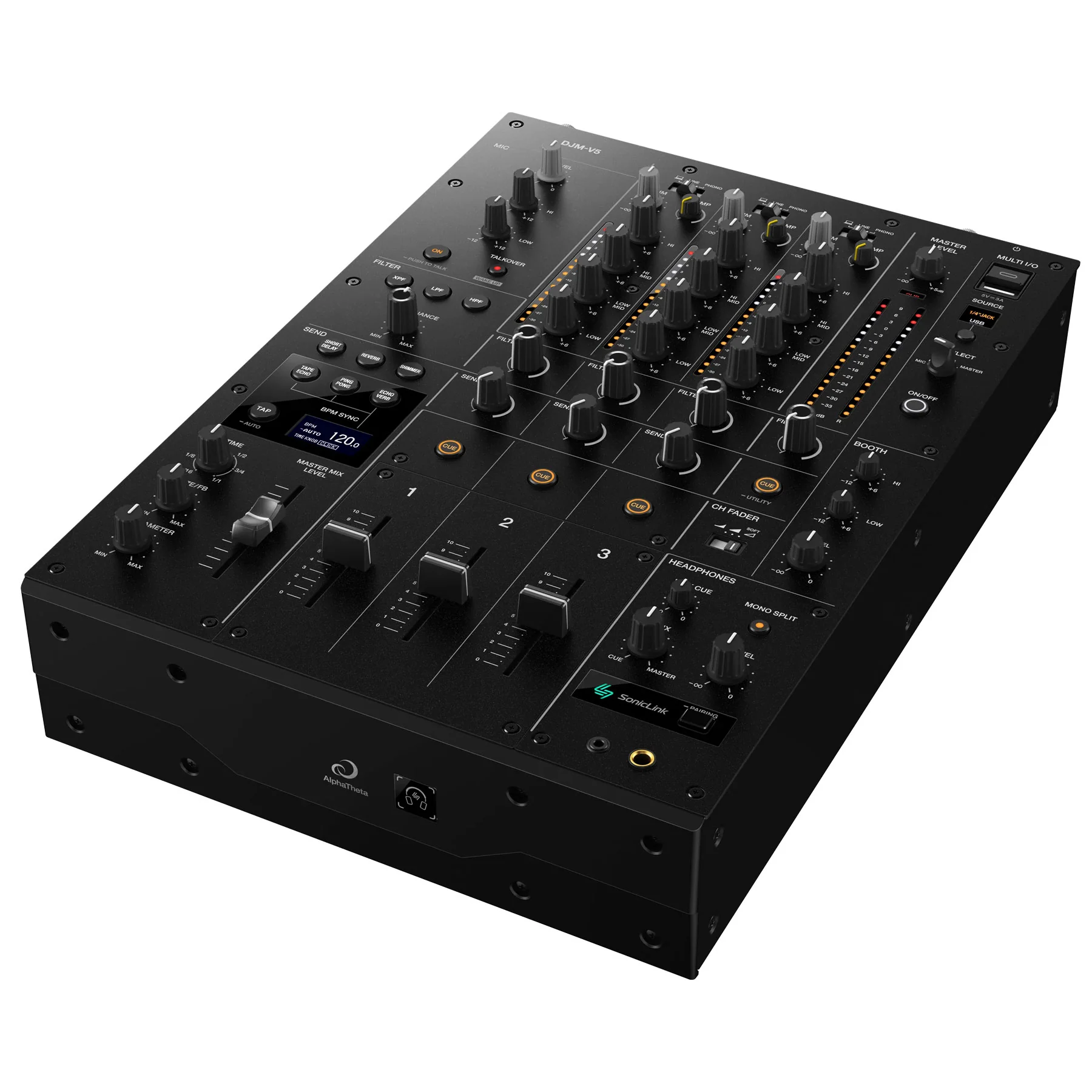

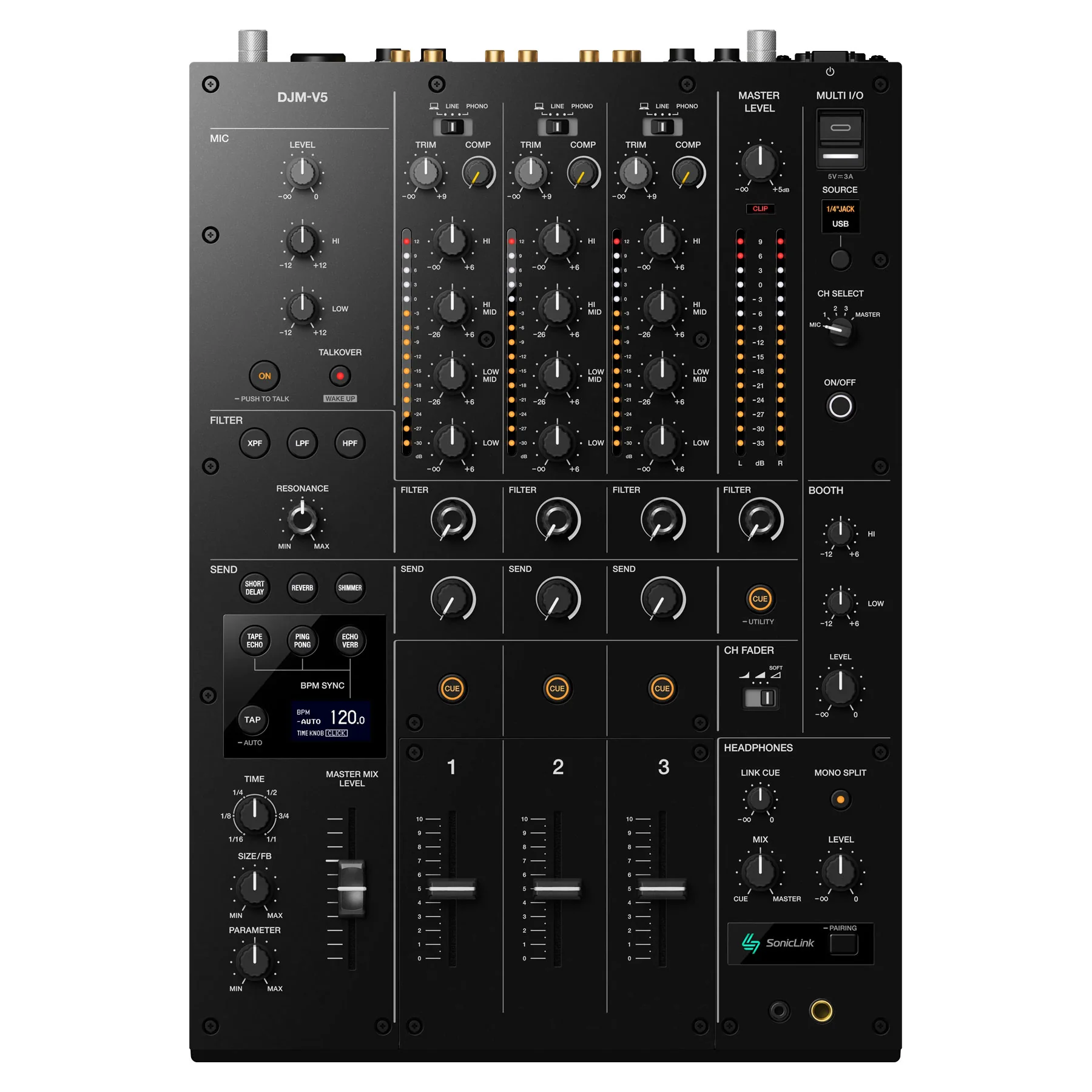

AlphaTheta: DJM-V5 3-Channel DJ Mixer

📌LAB POINTS

• upgraded 3-channel mixer; compact design w/ high-end features + pro feel
• inherits features, layout + design elements from the Pioneer DJM series
• professional quality sound - 32bit stereo, built-in USB sound card
• 60mm long-throw faders inherited from the DJM-V10-LF for smooth, natural mixing
• expanded 4-band channel EQ + 2-band booth EQ for precise mixing control
• (6) Send FX types + (3) Filter types
• built-in SonicLink transmitter for ultra-low-latency wireless monitoring

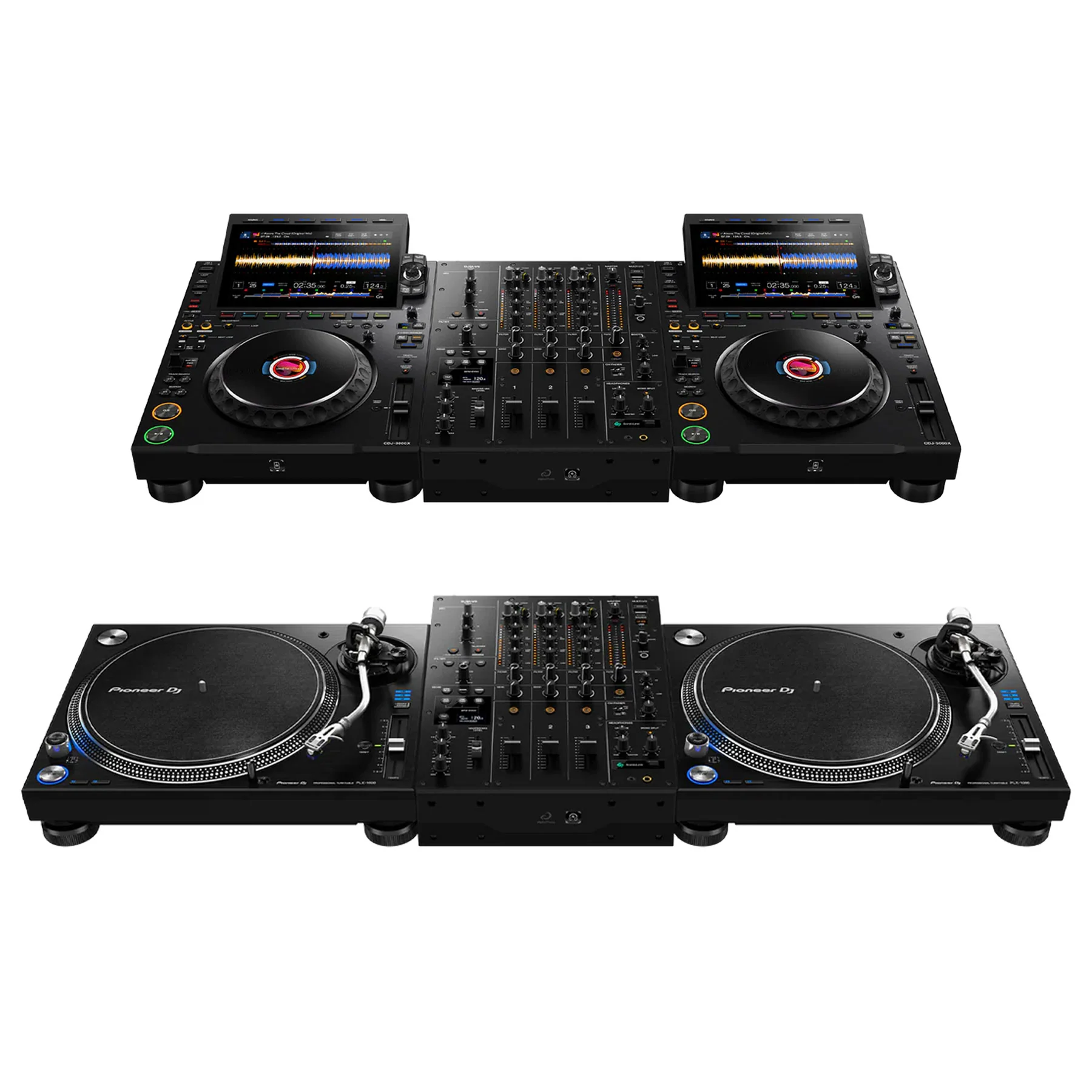

• connect seamlessly w/ CDJ-3000X, CDJ-3000 and rekordbox w/ PRO DJ LINK support
• preview tracks without loading them w/ Link Cue
• seamless integration with rekordbox and Serato DJ Pro w/ USB Type-C connection to a PC or Mac (Serato DJ Pro license not included)
• flexible connectivity w/ pro grade XLR + RCA outputs
• dual headphone outputs (1/4" + stereo mini)

"Thanks to PRO DJ LINK support, the DJM-V5 seamlessly connects to the CDJ-3000X, CDJ-3000, and rekordbox, enabling precise, BPM-synced effects control. This means you can add texture to the music at exactly the right moment and refine your mix. With Link Cue, you can preview tracks without loading them, and touch the full waveform of the currently playing track to listen to upcoming sections. A dedicated volume knob for cueing ensures a smooth process from track preparation to playback. Using a USB Type-C connection to a PC or Mac, the DJM-V5 integrates seamlessly with rekordbox for Mac/Windows and Serato DJ Pro. With support for a wide range of DJ styles, including DVS, it’s easy to create a smooth and flexible workflow." - AlphaTheta

🔎TECH SPECS

• channels: 3
• filter types: XPF, LPH, HPF
• send FX: Short Delay, Reverb, Shimmer, Tape Echo, Ping Pong, Echo-Verb
• MIDI control: fully assignable
• DVS control: rekordbox, Serato DJ Pro

• sampling rate: 96 kHz
• A/D converter: 32 bit
• D/A converter: 32 bit
• S/N ratio: LINE 105 dB / PHONO 88 dB / MIC 79 dB

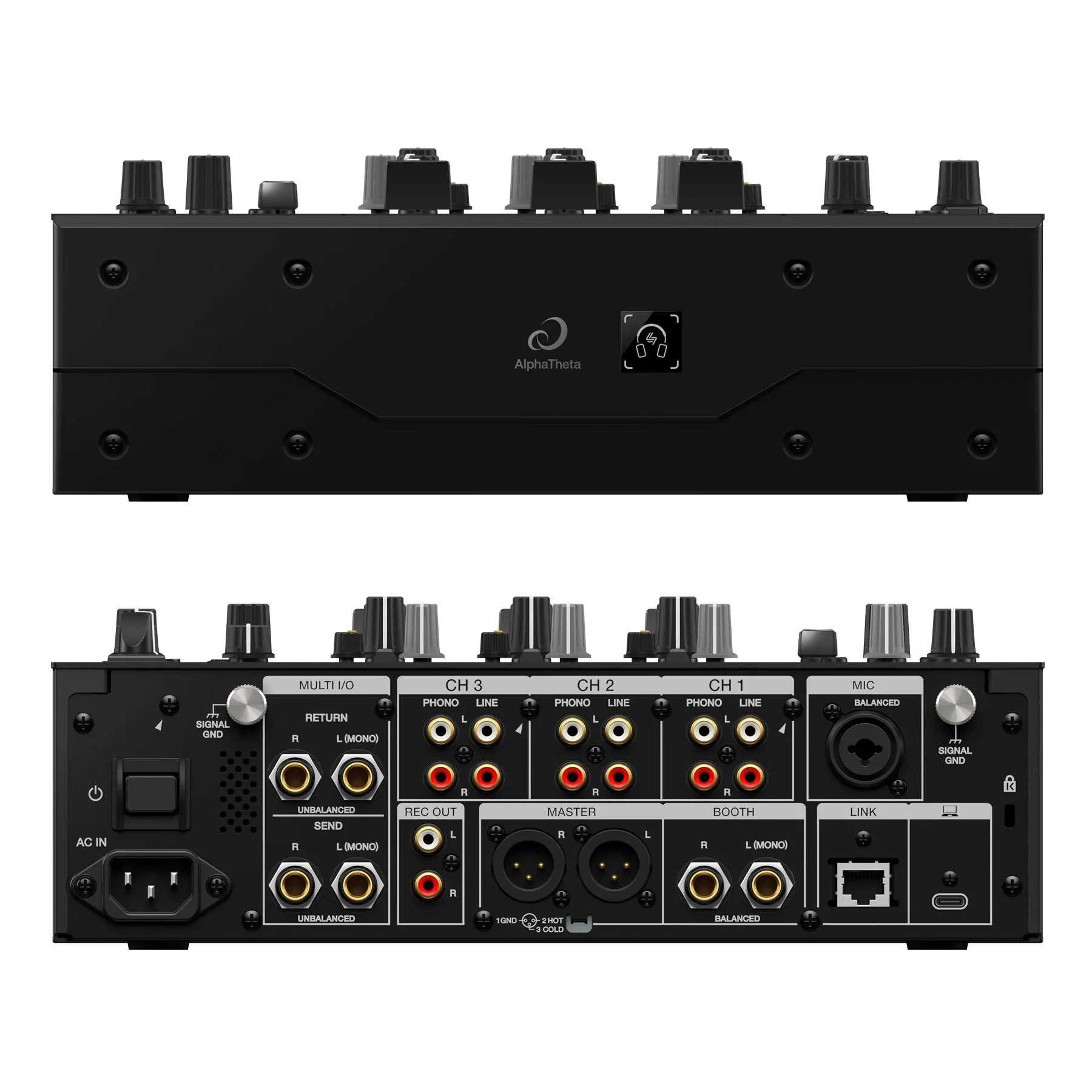

• inputs: 3 RCA Phono / 3 RCA Line / 1 Mic (XLR + 1/4")
• outputs: 1 Master (XLR) / 1 Booth (1/4") / 1 Rec Out (RCA) / 2 Headphone out (3.5mini / 1/4")
• send/return: 1/4" jack
• LAN: LAN x 1

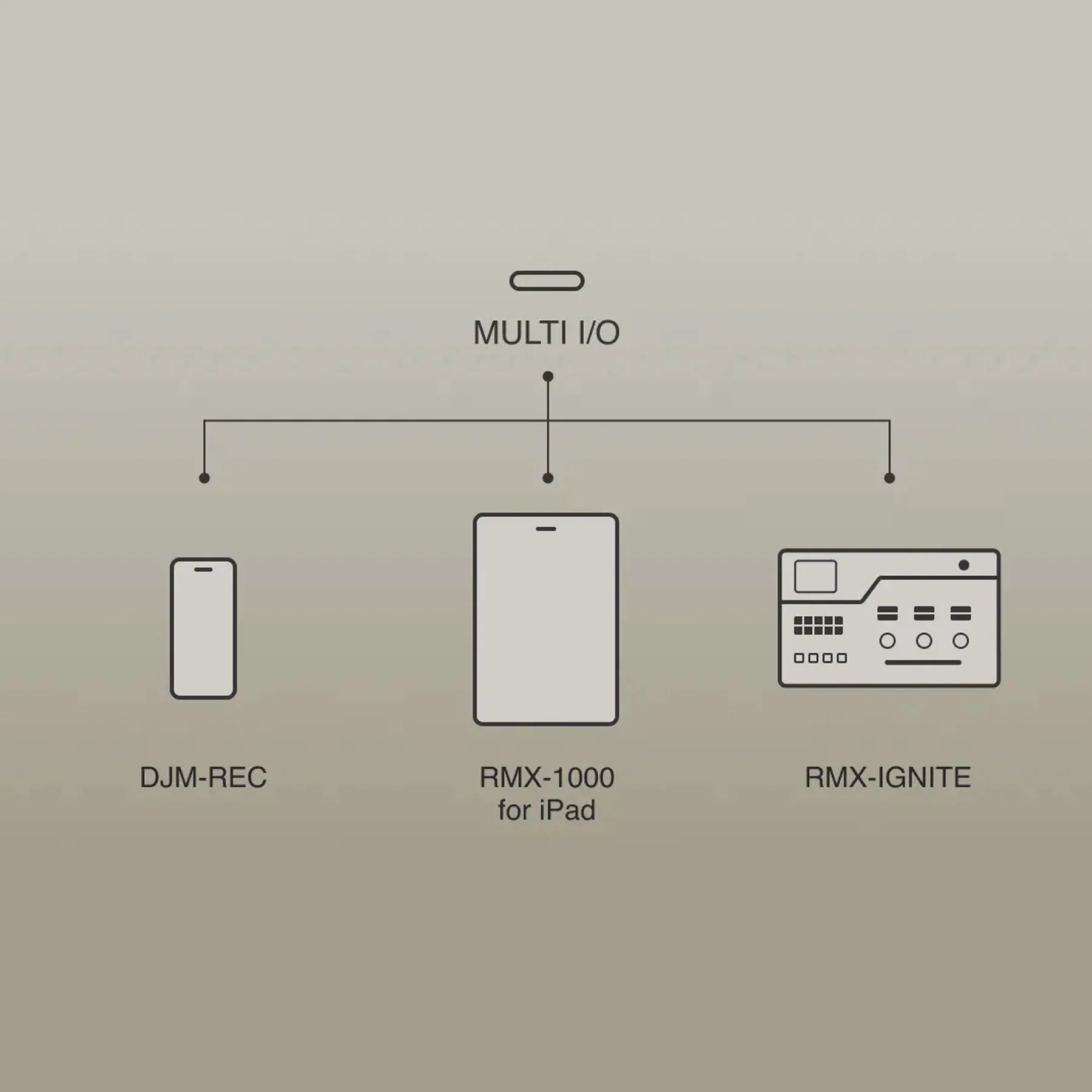

• USB: Type-C x 2 (MULTI I/O × 1, PC/Mac × 1)

• dimensions: 11.89" (W) x 17.22" (D) x 4.25" (H) / 302mm (W) × 437.5mm (D) × 108 mm (H)
• weight: 17.6 lbs / 8 kg

📦COMES WITH

• power cable
• quick start guide
